Peak Power Watts: 350W (MUL-350P-72)
Maximum Power Voltage: 38.9V
Maximum Power Current: 9.26A
Open Circuit Voltage: 48.3V
Short Circuit Current: 9.68A
Dimensions:1950×992×40 mm

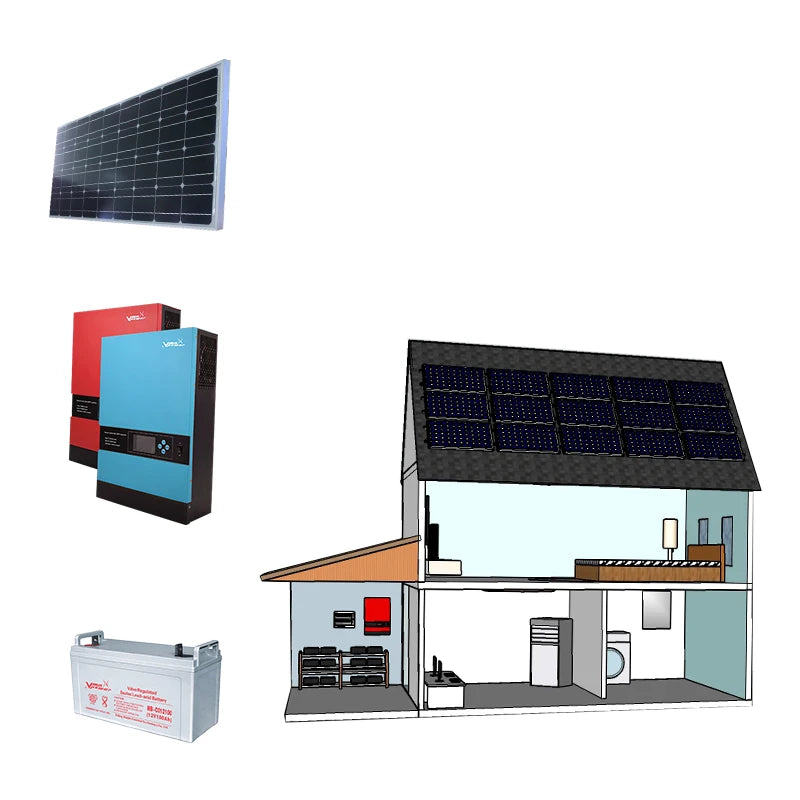

Vmaxpower 3KW 48V Solar Hybrid System Off For Household Solar Panels A Grade And MPPT Controller Solar System
Vmaxpower 3KW 48V Solar Hybrid System Off For Household Solar Panels A Grade And MPPT Controller Solar System
Regular price
£8,755.73 GBP
Regular price
£0.00 GBP
Sale price
£8,755.73 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
* Home solar system,the shortest answer is doing
Product Description
Specification
|
Vmaxpower 3KW Solar Off Grid Solar System(DC Voltage：24V)
|
||||||||
|
Items
|
Product Name
|
Specification
|
Quantity
|
Remarks
|
||||
|
1
|
Solar Panels
|
MUL-6M-350P-72 Poly 350W
|
9pcs
|
Size:1950*990*40
|
||||
|
2
|
Inverter with MPPT Controller
|
SuninvM HF Pro 3K 24V 3000W
|
1
|
Warranty: 2 years
|
||||
|
3
|
Seal lead acid battery
|
MUL-12V 200A Battery
|
4pcs
|
AGM type Deep Cycle solar battery
|
||||
|
4
|
Solar Brackets
|
6m C type steel
|
9pcs
|
Size:41*41*2.5mm
|
||||
|
5
|
PV cables(MC Four to inverter)
|
Black and Red
|
100m(each)
|
100M red,100M black
|
||||
|
6
|
MC Four connector ( C type steel connecting bolt and screw)
|
Customized by your requirement
|
10 set
|
Durable tools
|
||||
Product Details
Solar Panels(350W Polycrystalline)
Solar Hybrid Inverter with MPPT Controller
Hybrid Inverter Inverter with MPPT Controller
Rated Output Power: 3KW
Peak Power: 2KVA/4KVA/6KVA/8KVA/10KVA
Wide PV input range up to 500VDC
MPPT Controller: 80A
Work without battery,Batteryless suppot,
AC Charger Voltage: 170V-280V(Adjustable)
Support AC &Generator Input
Warranty: 2 Years
Lead acid & Gel & Lithium battery
Capacity(kWh): 2.4KWH
Nominal Voltage(Vdc): 12V
Nominal Capacity(AH): 200Ah
Depth of Discharge: 70%
Nominal Voltage(Vdc): 12V
Nominal Capacity(AH): 200Ah
Depth of Discharge: 70%
Warranty: 2 years
DC Combiner Box
DC Disconnect
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
SPD, Fuse are optional
Solar cable &MC Four
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:/1000VDC/1500VDC
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:/1000VDC/1500VDC
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

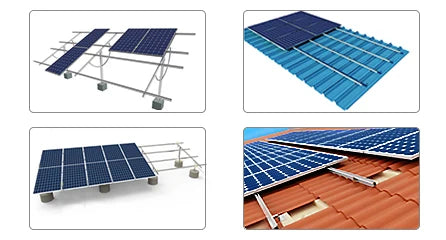

Four type of solar brackets are optional
There are four types of bracket installing. Weight:18.6 kg (41.0 lbMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
You can choose the most appropriate one for your part, We will customize by your requirements.
Mid & End Clamps: 35,40,45,50mm
You can choose the most appropriate one for your part, We will customize by your requirements.
