Solar power system can be used for display / outdoor router and other outdoor power supply, support engineering customization, wind and light complementary, IOT remote control, if you want to know more about the product, please contact customer service, we will introduce and recommend the appropriate model for you.
| Common monitoring equipment power consumption and configuration |
|||||
| Data basis: multimeter + monitoring equipment of different brands, the data has errors, for reference only! |
|||||
| Common monitoring equipment |
day |
Night |
24-hour average power (not exercise) |
Recommended solar configuration |
Remarks |
| Dome camera default near light |
(Calculated from 3 days) |
||||
| 4G camera |
2W |
5.5W |
3.75W |
60W30A |
|
| 2.5 inch 4G mini ball |
2.1W |
3.7W |
2.9W |
60W30A |
|
| 4.5 inch 4G mini ball |
4.2W |
6.8W |
5.5W |
100W40A |
|
| 6 inch 4G ball |
5W |
9.8W |
7.4W |
100W60A |
|
| Fluorite Wireless C5C |
2.2W |
7W |
4.6W |
100W40A |
|
| Haikang AC24V ball machine |
9W |
15W |
12W |
300W120A |
|
| Wireless bridge |
6W |
Long power supply |
6W |
80W40A |
|
| 4G router |
6W |
Long power supply |
6W |
80W40A |
|
1, Monocrystalline 60W PV panel. Operating temperature range -40~+80 degrees. Working voltage 18-22V. Panel light conversion rate of 21% or more. Aluminum alloy frame. Monocrystalline s
ilicon service life of 20 years or more
2, ternary lithium battery. Charging and discharging times more than 1500 times. Working temperature range -40~+80 degrees
3, multi-functional waterproof case. Used to store the battery. Controller. 4G routing and other accessories
4, anti-wind volt panel mounting bracket (not including the monitoring pole)
5, 300W wind turbine (optional products, need more than three levels of wind to have a role, if necessary, please contact customer service)

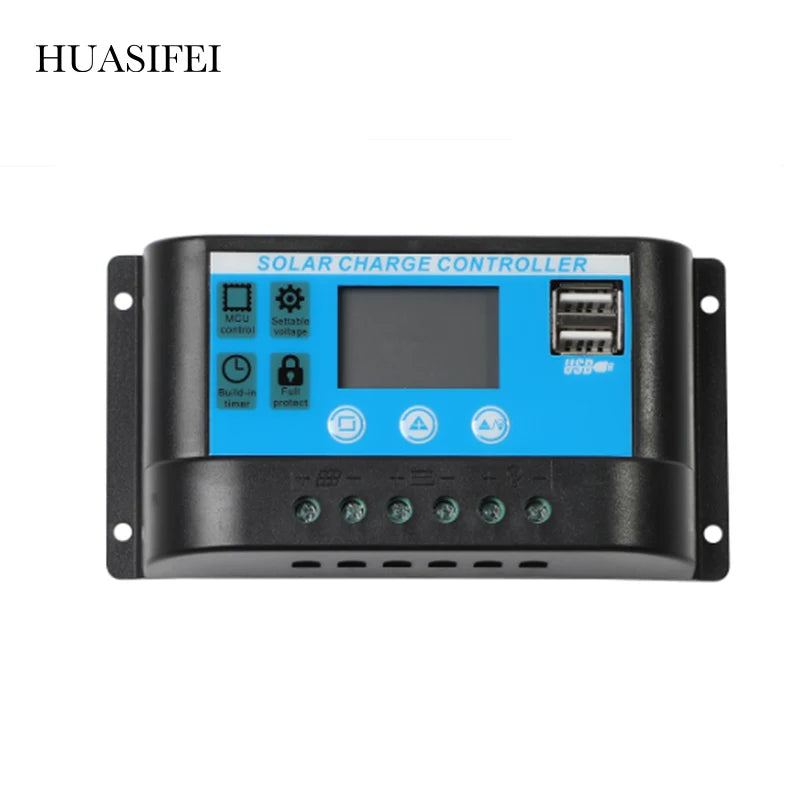

Solar monitoring kit: solar panels + fixed bracket + lithium battery + controller + waterproof box + 12VDC line + USB5V to DC line + 100 megabit 12V POE power supply combiner + installation screws accessories set
| model | battery | battery capacity | Solar energy | Solar size | Controller | board | Total power | Remarks |
| YXP-60W20AH | Ternary lithium battery | 12V20AH | 60W | 540*670*25 | PMW10A | veneer | 240WH | Split |
| YXP-60W30AH | Ternary lithium battery | 12V30AH | 60W | 540*670*25 | PMW10A | veneer | 360WH | Split |
| YXP-80W40AH | Ternary lithium battery | 12V40AH | 80W | 730*670*30 | PMW10A | veneer | 480WH | Split |
| YXP-100W60AH | Ternary lithium battery | 12V60AH | 100W | 920*670*30 | PMW10A | veneer | 720WH | Split |
| YXP-150W80AH | Ternary lithium battery | 12V80AH | 150W | 1330*670*30 | PMW10A | veneer | 960WH | Split |
| YXP-180W90AH | Ternary lithium battery | 12V90AH | 180W | 1480*670*30 | PMW10A | veneer | 1080WH | Split |
| YXP-200W100AH | Ternary lithium battery | 12V100AH | 200W | 920*670*30 | PMW20A | veneer | 1200WH | Split |
| YXP-300W160AH | Ternary lithium battery | 12V100AH | 300W | 1330*670*30 | PMW20A | veneer | 1920WH | Split |
| YXP-400W220AH | Ternary lithium battery | 12V220AH | 400W | 1480*670*30 | PMW30A | veneer | 2640WH | Split |
| 300W wind turbine | NO | NO | NO | NO | Wind power 10A | NO | 300W | Split |
