40W DC-18V OUTPUT Monocrystalline silicon solar power panels
20 AH Power Grade Ternary Lithium Energy Storage Battery
DC OUT PUT 12V 5A Compatible with commercially available 12V powered surveillance cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
2-in-1 solar angle adjustment and surveillance camera mounting bracket.
Equipped with a 4G outdoor waterproof router for reliable network transmission
Outdoor Use , Waterproof IP66
Solar System Off-grid Energy Storage System 80W 30/40Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera
Solar System Off-grid Energy Storage System 80W 30/40Ah for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera
Regular price
£211.89 GBP
Regular price
£0.00 GBP
Sale price
£211.89 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Solar System Off-grid Energy Storage System Lithium Battery for Home Farm Island Outdoor 4G Router Lighting Surveillance Camera DC 12V OUT PUT
Features :
Multi-purpose
Can be used in marinas, islands, mountains, pastures, etc. where there is no electricity supply. No need to install power cables, easy to install and ready to use.
EASY USE
In extreme conditions where there is not enough sunlight to generate electricity, a fully charged battery can provide up to 72 hours of uninterrupted surveillance power for the accompanying camera.（The above data comes from the test under 25℃ environment, for reference only. Please note: Low temperature environment will lead to power decay, please refer to the actual use time.）

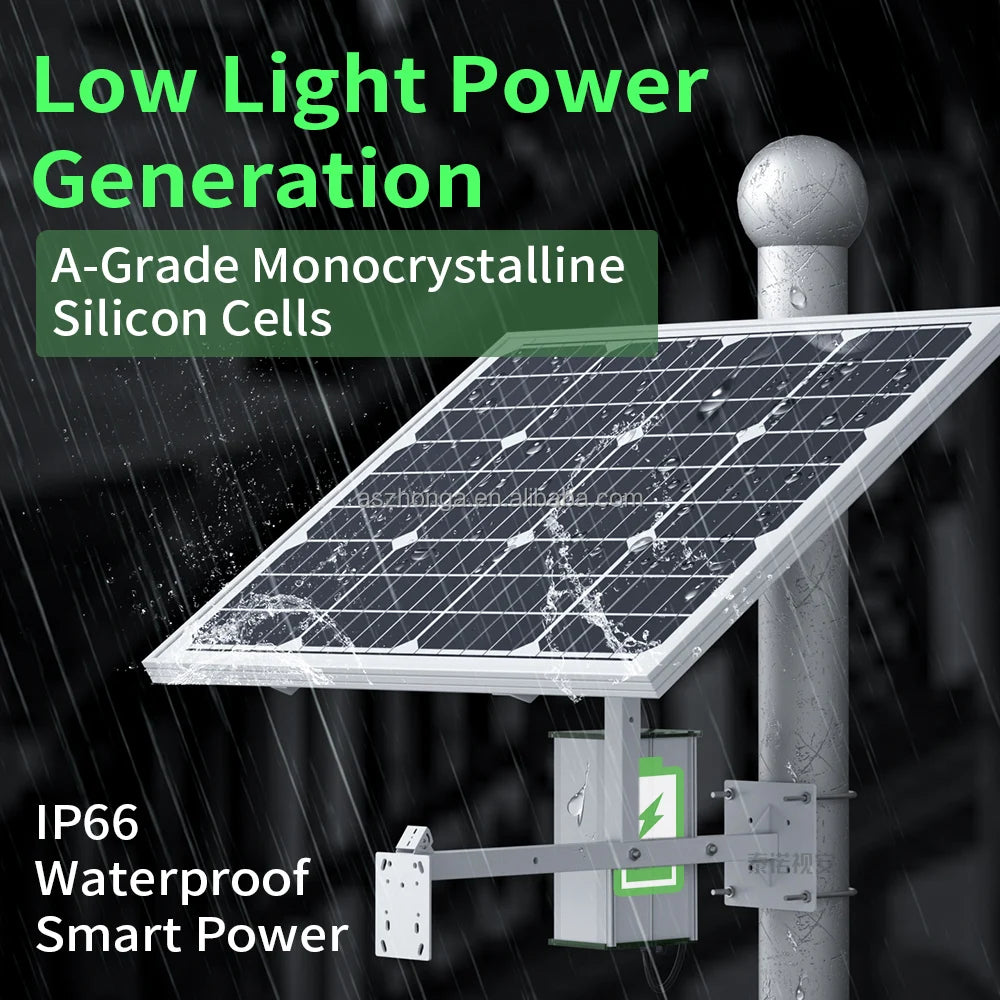

40W Monocrystalline silicon solar power panels
The solar panels are made using a monocrystalline silicon process. High power generation efficiency, providing up to 21% photovoltaic conversion efficiency. Can quickly replenish power for storage batteries.(NOTE:Solar panel power generation is affected by weather and latitude, please refer to the actual power generation, the above
data is collected from the laboratory.)
data is collected from the laboratory.)
20 Ah Trithium Energy Storage Battery
DC OUT PUT 12V 5A Compatible with commercially available 12V powered surveillance cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
Battery voltage LED display to tell at a glance how much power is left
NOTE(The above picture is only to show the effect, the number of batteries installed inside, please prevail in kind)
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
Battery voltage LED display to tell at a glance how much power is left
NOTE(The above picture is only to show the effect, the number of batteries installed inside, please prevail in kind)
Multiple mounting options
Use special bracket for multiple environment installation.
IP66 Outdoor Waterproof
Outdoor security camera with waterproof body and power adapter, work temperature minus -20 degrees Celsius to 60 degrees Celsius, work well on the heavy rains or snows days.
Size &Product Details:
Package LIST:
1Pcs * 40W Solar panel
1Pcs * 20 Ah Ternary Lithium Energy Storage Battery mounting bracket.
2Pcs *Metal Hoop
1Pcs * 20 Ah Ternary Lithium Energy Storage Battery mounting bracket.
2Pcs *Metal Hoop
Specification
|
Model
|
SP40-20
|
||
|
Solar Panel Cell Process
|
Monocrystalline Silicon Whole cells
|
||
|
Rated Maximum Power(Pmax) [W]
|
40
|
||
|
Open Circuit Voltage(Voc) [V]
|
21.6
|
||
|
Maximum Power Voltage(Vmp) [V]
|
18
|
||
|
Short Circuit Current(Isc) [A]
|
1.93
|
||
|
Maximum Power Current(Imp) [A]
|
1.74
|
||
|
Module Efficiency [%]
|
21.3
|
||
|
Max system voltage [V]
|
1000
|
||
|
Panel Dimension [mm]
|
540*450*25
|
||
|
Power Tolerance
|
0~+3W
|
||
|
Temperature Coefficient of Isc(α_Isc)
|
+0.048%/℃
|
||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.27%/℃
|
||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.35%/℃
|
||
|
Operating Temperature
|
-25℃~70℃
|
||
|
STC
|
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
|
||
|
Battery Type
|
Ternary Lithium Batteries
|
||
|
Nominal Capacity [Ah]
|
20
|
||
|
Power Management Controller
|
Built-in PWM
|
||
|
Power and voltage display
|
Real-time Battery Voltage LED Display
|
||
|
DC IN
|
12.6V
|
||
|
Solar Power Input
|
DC-18V 2 Pin Aviation Cable Plug
|
||
|
DC OUT
|
12V 5A
|
||
|
Protective Features
|
Overload, reverse connection, overdischarge, overcharge, short circuit, backflow prevention, etc.
|
||
|
Operating Temperature
|
-25℃~50℃
|
||
|
Nominal Voltage
|
11.1V
|
||
|
Intemal Rcsistance
|
Full Charged Battery 25℃
|
||
|
Capacity Affected by Tempcrature (10 hour)
|
40℃(104°F)
|
102%
|
|
|
25℃ (77°F)
|
100%
|
||
|
0℃ (32°F)
|
90%
|
||
|
-15℃ (5°F)
|
70%
|
||
|
Self-Discharge 25℃ Capacity
|
after 3month storage
|
92%
|
|
|
after 6month storage
|
84%
|
||
|
after 12month storage
|
65%
|
||
|
Charge constant Voltage 25℃ (77°F)Float
|
Initial charging current less than 10A Voltage 12.3-12.6V
|
||
|
Operating temperature
|
-20 to +60 degree
|
||
|
Operating humidity
|
10% to 95%
|
||
|
Material&Waterproof Level
|
Side Housing ,Outdoor Use,Waterproof IP66
|
||
|
Package Size(mm)
|
520*220*620
|
||
|
Package Weight(kg)
|
11
|
||
