SNAT Hybrid Solar System Off-Grid Solar System 20kw 30kw 40kw 50kw 60kw 80kw 100kw Solar Energy Systems
SNAT Hybrid Solar System Off-Grid Solar System 20kw 30kw 40kw 50kw 60kw 80kw 100kw Solar Energy Systems
Regular price
£21,860.03 GBP
Regular price
£0.00 GBP
Sale price
£21,860.03 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Off grid solar sytem also called stand alone solar system. It does not connect with Grid or called Utility. It is very popular and
suitable for remote area where there is no Pubilc power or Public power is instable.
suitable for remote area where there is no Pubilc power or Public power is instable.
|
Home solar system
|
||
|
Target facilities
|
Personal residence
|
|
|
Application
|
Refrigerator, energy-saving lighting, TV, fan, street light
|
|
|
Advantage
|
The system structure is simple;
Very suitable for scattered rural areas; Use more accurately because the user is a separate household. |
|

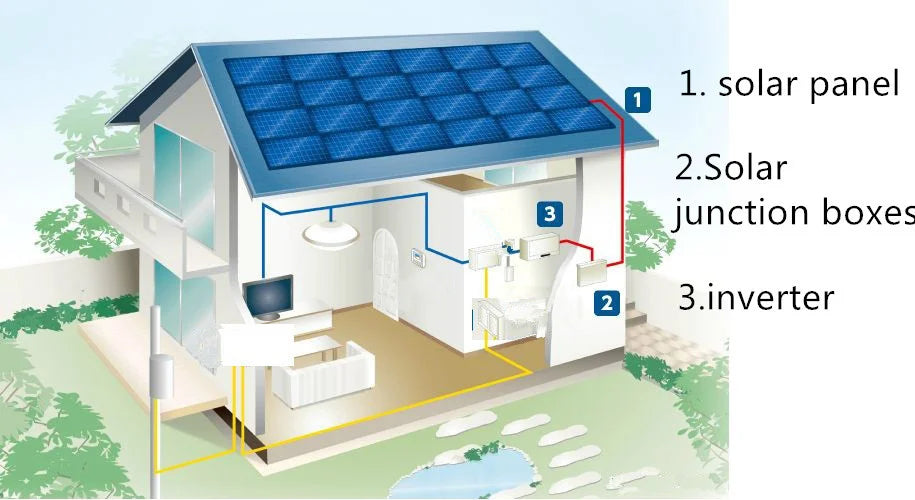

The solar power system consists of photovoltaic modules (including brackets), photovoltaic combiners, solar controllers, and batteries (including battery cabinets). If the load is AC equipment (220V or 110V), you need to configure the inverter. The functions of each part are as follows:
(1) Photovoltaic modules:
(2) Photovoltaic combiner box:
(1) Photovoltaic modules:
Photovoltaic modules are an important part of solar power generation systems and a high value part of
solar power generation systems. Its role is to convert the radiant energy of the sun into electrical energy, or send it to a
battery for storage, or to drive the load.
solar power generation systems. Its role is to convert the radiant energy of the sun into electrical energy, or send it to a
battery for storage, or to drive the load.
(2) Photovoltaic combiner box:
The photovoltaic combiner box is used to reduce the connection between the PV module and theinverter/controller and is convenient for maintenance. It has perfect functions such as anti-counter-attack, over-current protection and lightning protection to improve the product. Safety and reliability.
(3) Solar controller:
(3) Solar controller:
The solar controller provides the functions of the photovoltaic module to charge and discharge the battery,such as overcharge, overdischarge protection, temperature compensation, etc. Other additional functions such as light control
switches and time control switches should be optional for the controller.
(4) Pure Sine Wave Inverter:
switches and time control switches should be optional for the controller.
(4) Pure Sine Wave Inverter:
The electricity generated by the PV module is DC, and it cannot supply power to the AC load. The inverter needs to convert DC power into AC power and provide it to the load.
(5) Battery:
(5) Battery:
Generally, lead-acid batteries and colloidal batteries are used. In small and micro systems, nickel-hydrogen batteries, nickel-cadmium batteries or lithium batteries can also be used. Its function is to store the energy generated by the solar panel when there is light, and then release it when needed.
