> Perc/Bifacial/HJT solar panels are available
>25 years warranty
> Highest quality with full certificates
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance.
MPPT Hybrid Solar Energy System 5kw Solar Panel System Home 5kw Grid Tied solar Power System 6kw 8kw 10kw
MPPT Hybrid Solar Energy System 5kw Solar Panel System Home 5kw Grid Tied solar Power System 6kw 8kw 10kw
Regular price
£1,310.08 GBP
Regular price
£0.00 GBP
Sale price
£1,310.08 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Before order,Please Read Clearly!
Which solar power system is suitable for me?
Sunheed solar systems can be used in homes, offices, villas, hospitals, churches, etc.
Sunheed solar power is from 300w to 100MW,
if you don’t know which model system is suitable for you,
Sunheed solar systems can be used in homes, offices, villas, hospitals, churches, etc.
Sunheed solar power is from 300w to 100MW,
you can choose according to your own needs.
if you don’t know which model system is suitable for you,
you can Send us an inquiry.
Our 10 years experience sale manager will help you configure the system in 12hrs.
How to chose the suitable solar system?
★1.Chose solar system base on Installation area;
★2.Chose solar system base on your electricity bill;
★3.Chose solar system base on your home appliance capacity;
★4.Chose solar system base on your money/budget.
Send an inquiry, we can design a set of solar customized system that suits you best.
Our 10 years experience sale manager will help you configure the system in 12hrs.
How to chose the suitable solar system?
★1.Chose solar system base on Installation area;
★2.Chose solar system base on your electricity bill;
★3.Chose solar system base on your home appliance capacity;
★4.Chose solar system base on your money/budget.
Send an inquiry, we can design a set of solar customized system that suits you best.
Product Description
6KW Off-grid Hybrid Inverter 120A MPPT 48Vdc Prue Sine Wave WITH CE CB IEC LCD+LED Display Solar FOR Power System Home
Main Features
1. 120A MPPT solar charger inside, max pv input 6kw+ (27A )
2. With local wifi built inside (Requires App. Remote Wifi optional)
3. USB on-the-go function
4. Optional for parallel operation up to 9 units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4
7. On grid and off grid solar inverter, support self-consumption and feed into the grid.
8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 450Vdc),
support no battery working during the day time.
3. USB on-the-go function
4. Optional for parallel operation up to 9 units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4
7. On grid and off grid solar inverter, support self-consumption and feed into the grid.
8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 450Vdc),
support no battery working during the day time.
About the details and price ,feel free to contact with Customer service staff.Click Here.
|
Model No.
|
SUNNYPOLO 6KVA
|
|
|
Basical information
|
||
|
Max. PV Input Power
|
6000W
|
|
|
Rated AC Output Power
|
6000W
|
|
|
Grid-Tie Operation
|
||
|
PV Input (DC)
|
||
|
Nominal DC Volt/Max DC Voltage
|
360VDC/500VDC
|
|
|
Start-up Voltage/Initial Feeding Voltage
|
120VDC
|
|
|
MPPT Voltage Range
|
120-450VDC
|
|
|
No. of MPPT Tracker/Max. Input Current
|
1/27A
|
|
|
Grid Output (AC)
|
||
|
Nominal Output Volt
|
230Vac, Single Phase (dual AC output)
|
|
|
Output Voltage Range
|
184V-265Vac or 195-253V (Selectable)
|
|
|
Nominal Output Current
|
26.0A
|
|
|
Power Factor
|
>0.9
|
|
|
Efficiency
|
||
|
Max. Conversion Efficiency (DC/AC)
|
96%
|
|
|
Off-Grid Operation
|
||
|
AC Input (AC)
|
||
|
AC Start-up Voltage/Auto Restart Volt.
|
120Vac-140Vac/180Vac
|
|
|
Acceptable Input Voltage Range
|
90-280Vac or 170-280Vac
|
|
|
Max. AC Input Current
|
40A
|
|
|
PV Input (DC)
|
||
|
Max. DC Voltage
|
500VDC
|
|
|
MPPT Voltage Range
|
120-450VDC
|
|
|
No. of MPPT Tracker/Max. Input Current
|
1/27A
|
|
|
Grid Tie Mode
|
||
|
Nominal Output Volt
|
220Vac/230Vac/240Vac, Single Phase
|
|
|
Feed-in Voltage Range
|
184V-265Vac
|
|
|
Max Efficiency DC/AC
|
>95%
|
|
|
Battery Mode Output
|
||
|
Nominal Output Volt
|
220Vac/230Vac/240Vac (dual AC output)
|
|
|
DC output
|
1pc*12Vdc/10A Max
|
|
|
Waveform
|
Pure sine wave
|
|
|
Efficiency(DC to AC)
|
93%
|
|
|
Hybrid Operation
|
||
|
PV Input (DC)
|
||
|
Nominal DC Volt/Max DC Voltage
|
360VDC/500VDC
|
|
|
Start-up Voltage/Initial Feeding Voltage
|
120VDC
|
|
|
MPPT Voltage Range
|
120-450VDC
|
|
|
No. of MPPT Tracker/Max. Input Current
|
1/27A
|
|
|
Grid Output (AC)
|
||
|
Nominal Output Volt
|
220Vac/230Vac/240Vac, Single Phase (dual AC output)
|
|
|
Output Voltage Range
|
184V-265Vac or 195-253V (Selectable)
|
|
|
Nominal Output Current
|
26.0A
|
|
|
AC Input (AC)
|
||
|
AC Start-up Voltage/Auto Restart Volt.
|
120Vac-140Vac/180Vac
|
|
|
Acceptable Input Voltage Range
|
90-280Vac or 170-280Vac
|
|
|
Max. AC Input Current
|
40A
|
|
|
Battery Mode Output
|
||
|
Nominal Output Volt
|
220Vac/230Vac/240Vac (dual AC output)
|
|
|
DC output
|
1pc*12Vdc/10A Max
|
|
|
Waveform
|
Pure sine wave
|
|
|
Efficiency(DC to AC)
|
93%
|
|
|
Battery & Charger
|
||
|
Battery Type Supported
|
Lead Acid/VRLA/AGM/GEL/Flooded/Tubular/LiFePO4
|
|
|
Nominal Battery Voltage
|
48Vdc
|
|
|
Max Solar Charge Current
|
120A
|
|
|
Max AC Charge Current
|
120A
|
|
|
Max Total Charge Current
|
120A
|
|
|
General
|
||
|
Physical
|
||
|
Products Dimension,D X W X H (mm)
|
456*303*148
|
|
|
Product Net Weight(kgs)
|
12
|
|
|
Packing Dimension,D X W X H (mm)
|
535mm*382*mm*224mm,1PC/CTN
|
|
|
Gross Weight(kgs)
|
13.5
|
|
|
Parallel functions Optional
|
Yes, optional, max 9pcs
|
|
|
Communication Interface
|
RS232,USB,RS485,WIFI
|
|
|
Environment
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Operating Temperature
|
-10℃ to 50℃
|
|
|
Storage Temperature
|
-15℃ to 60℃
|
|
|
*
Kindly Reminder: The Above System Configuration For Initial Designing, The System Configuration Are Subject to Changing Depends onYour Final Installation Conditions and Requirements.
|
||
Configuration Details
Solar Panels
Off Grid Solar Inverter
1. 120A MPPT solar charger inside, max pv input 6kw+ (27A )
2. With local wifi built inside (Requires App. Remote Wifi optional)
3. USB on-the-go function
4. Optional for parallel operation up to 9
2. With local wifi built inside (Requires App. Remote Wifi optional)
3. USB on-the-go function
4. Optional for parallel operation up to 9
units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4

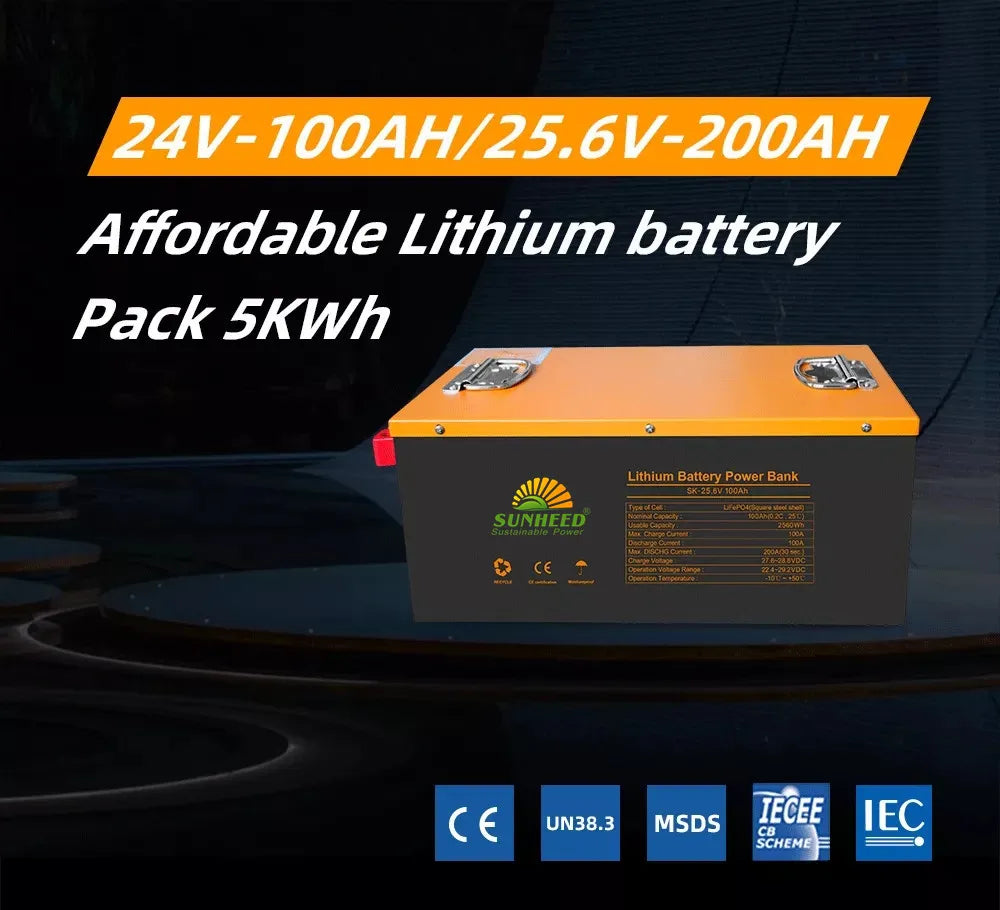

Solar Battery
> Lead-acid batteries > Lithium battery
> 2V,12V,48V Without a battery bank (or a generator) it'll be lights out by sunset.
A battery bank is essentially a group of batteries wired together
PV Mounting System
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Accessories
> PV Cable 4mm2 6mm2
> AC Cable
> DC Switches
> AC Breaker
> AC Cable
> DC Switches
> AC Breaker
Production & QC
1.Visual Inspection
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process
2.EL Testing
3. Flash Testing
4. Pre-Packing Testing
5. International Certification Examining
Authoritative certification companies conduct rigorous testing to ensure that product quality meets first-class international
certification.
certification.
Projects Show
