HHH-Kailynn EEL 16S 51.2V With Bluetooth Lifepo4 230AH 280AH DIY 48V Battery Case Lifepo4 battery kit For Solar Energy System
HHH-Kailynn EEL 16S 51.2V With Bluetooth Lifepo4 230AH 280AH DIY 48V Battery Case Lifepo4 battery kit For Solar Energy System
Regular price
£1,083.49 GBP
Regular price
£0.00 GBP
Sale price
£1,083.49 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Paramenters
|
Item
|
General Parameters
|
|
Model
|
EEL 48V 280AH Lifepo4 Battery Case
|
|
Nominal Voltage
|
51.2V
|
|
Nominal Capacity
|
280AH
|
|
Supported battery models
|
CATL/CALB/E-VE 280AH/302AH/304AH
|
|
Max Charge Voltage
|
58.4V
|
|
Cut-off Discharge Voltage
|
40V
|
|
Standard Charge Float Voltage
|
55.2V
|
|
Max 10sec. Pulse Current
|
380A
|
|
Max. Continuous Discharge Current
|
200A
|
|
Max Charge Current
|
200A
|
|
Recommended Current
|
140A (25±2℃)
|
|
Weight (Approximate)
|
29KG
|
|

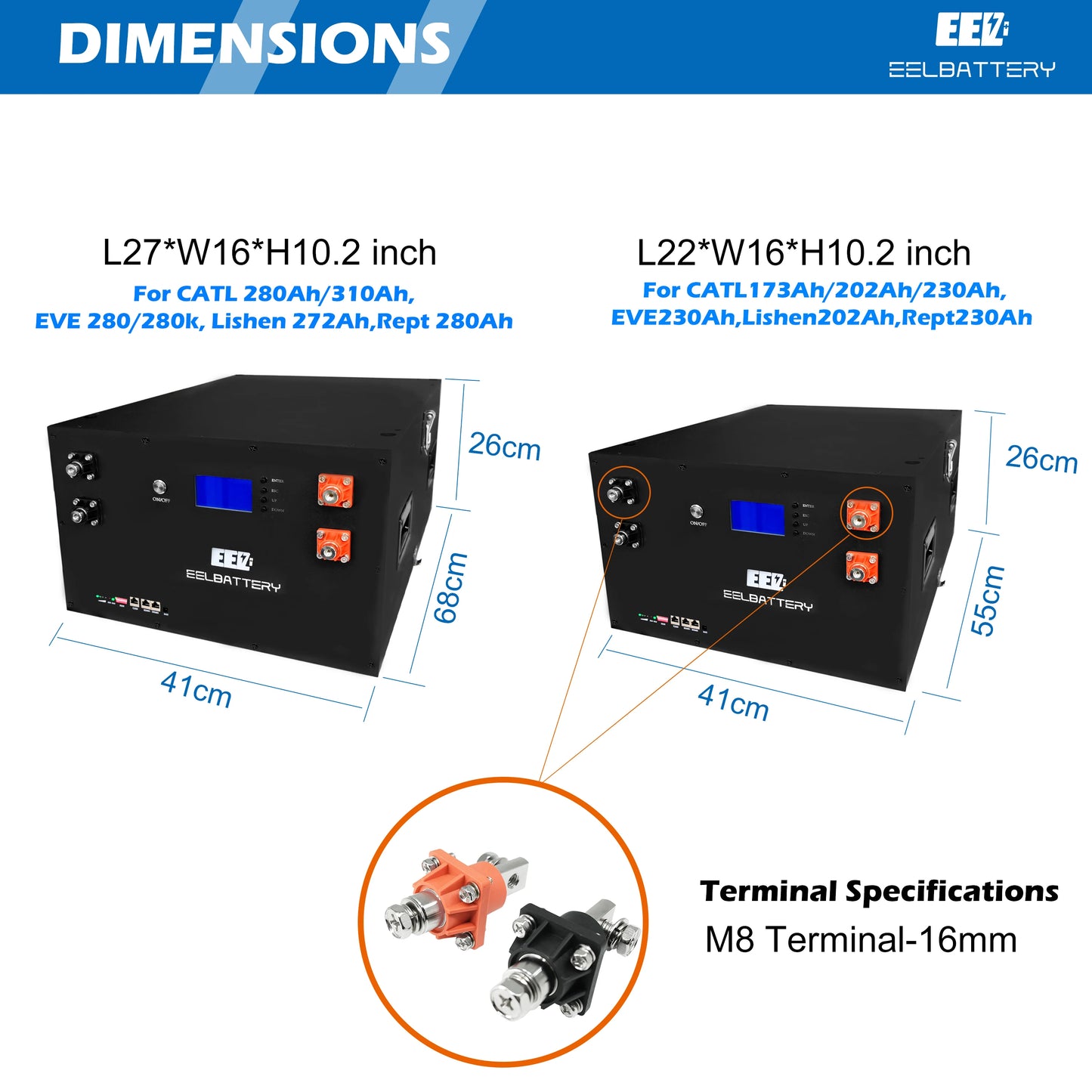

Dimensions (L*W*H)
|
L68*W41*H26cm
|
|
Operating Temperature
|
Charging: -20~60℃/Discharging: -30~60℃
|
|
Application
|
Power Storage System, Electric vehicles, Golf carts and so on
|
Battery Accessories
Packing List:
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover) 1 * 16S 48V (100A/150A/ 200A) LiFePO4 Battery BMS 4 * Handle 2 * PCB Board for BMS and Cell Connection 3 * Upper and Lower Latch lock 1 * LCD Display（With Bluetooth function） 1 * LCD Screen Sticker 4 * Button Cap 3 * Wires (LCD Screen wire, PCB board and PCB board Connector) 2 * Battery Terminals (P+ Terminal and P- Terminal) 1 * RS485 USB adapter to connect upper computer Other components included: 6 * Copper busbars (BMS connection) 15 * Flexible busbars (Cell connection) 10 * Epoxy sheet (Between cell and the case) 26 * EVA Tape (Between cells) 1 * PC sheet (Top cover)
Note:
Our kits are equipped with a BMS that is CAN and 485 communication compatible and can be matched to most brands of inverters on the market without complicated commissioning.
