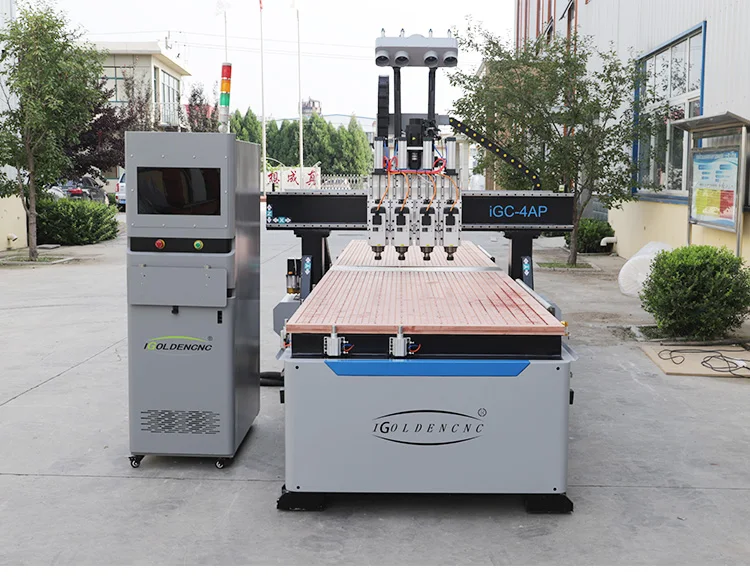

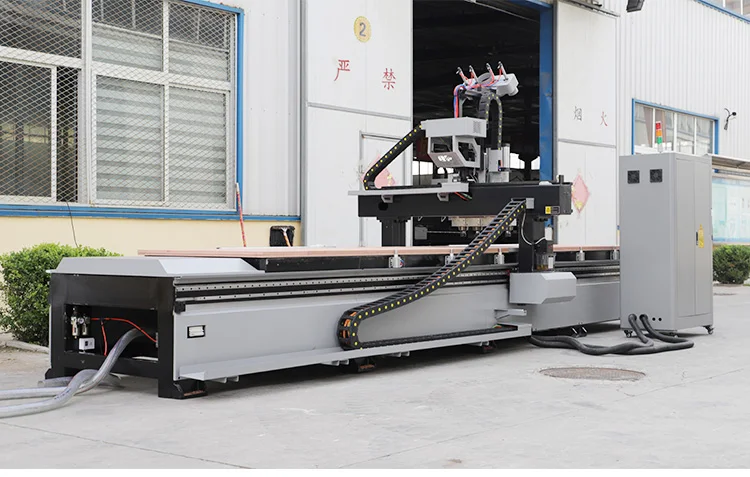

Automatic Cnc Woodworking Four Spindle Heads Wooden Door Router Kitchen Cabinets Processing Furniture Making Machine

Automatic Cnc Woodworking Four Spindle Heads Wooden Door Router Kitchen Cabinets Processing Furniture Making Machine

£7,335.99 GBP
£7,335.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Condition:New
CNC or Not:CNC
Brand Name:IGOLDENCNC
Origin:Mainland China
Certification:CE
Condition:New
Range of Spindle Speed(r.p.m):1 - 24000 rpm
Positioning Accuracy (mm):0.01 mm
No. of Spindles:Multi
Working Table Size(mm):1300*2500
Machine Type:Nesting CNC Router
Travel (X Axis)(mm):1300 mm
Travel (Y Axis)(mm):2500 mm
Repeatability (X/Y/Z) (mm):0.01 mm
CNC or Not:CNC
Place of Origin:Shandong, China
Brand Name:igoldencnc
Voltage:option for cnc wood carving machine
Dimension(L*W*H):1300*2500*200mm cnc wood cutting machine
Weight (KG):1200
Warranty:2 years
Key Selling Points:Multifunctional
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:2 years
Core Components:Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Product name:3d cnc wood carving machine
Working area:1325 wood cnc router machine
Inverter:Fuling inverter for atc wood cnc router machinery

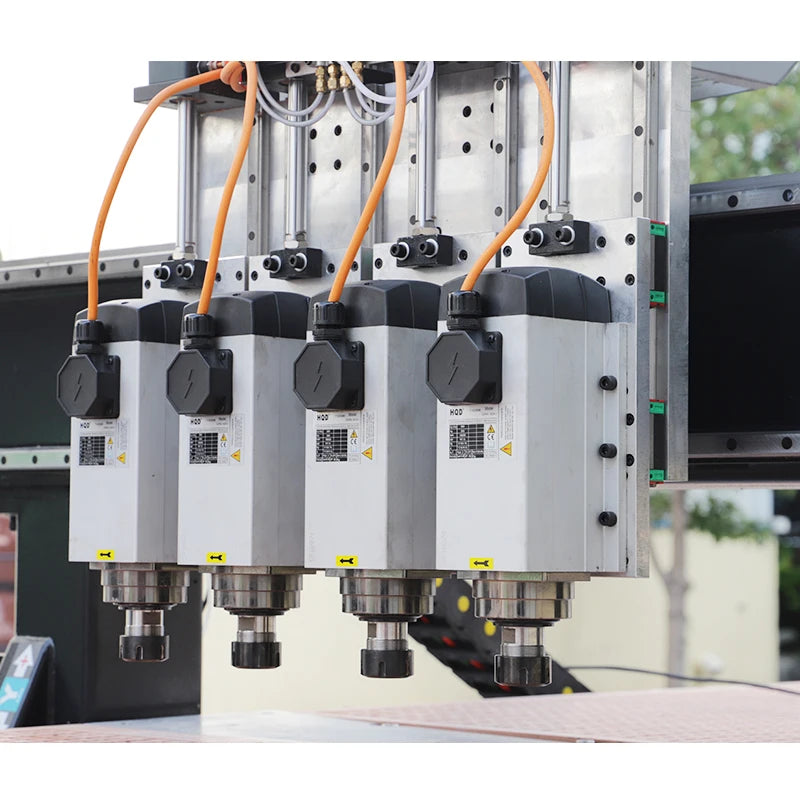

Spindle:HQD 6KW air cooling*2+4.5KW air cooling*2
Control system:Taiwan LNC system + wireless handwheel
Transmission:XY helical rack,Z TBI ball screw

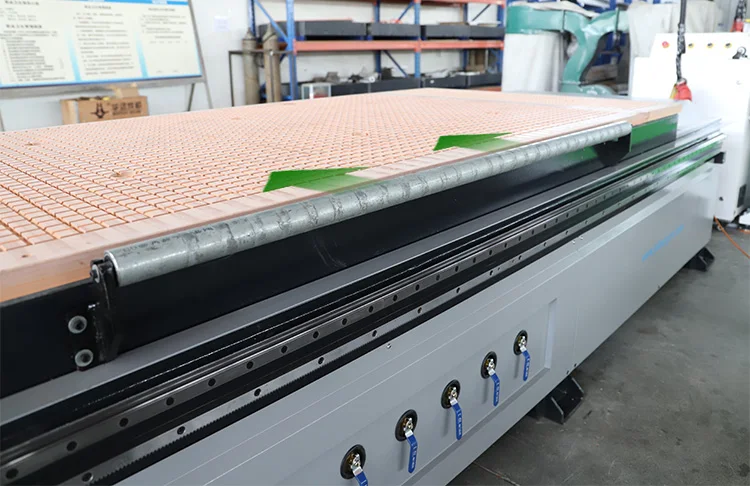

Working table:Class A hard special vacuum adsorption table
Application:MDF WOOD ACRYLIC ALUMINUM
Keywords:Cnc Wood Router Engraver
Usage:furniture making machine
After-sales Service Provided:Field installation, commissioning and training
Marketing Type:New Product 2020
Certification:ISO CE for cnc 1325 wood cutting machine
Product Description



multi 8 x 4 1325 2030 2060 atc nesting cnc wood machinery router price





Model

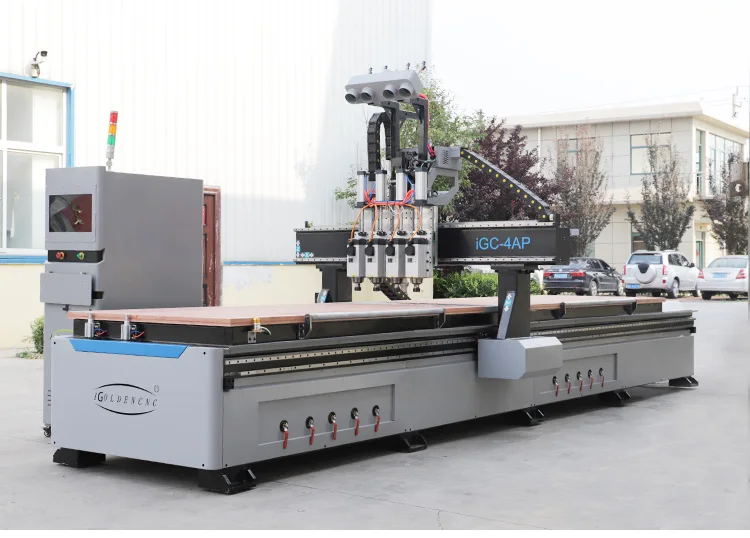

iGC-4AP-1325

Machine stroke

1300*2500*200mm*2 stations

File format

G code

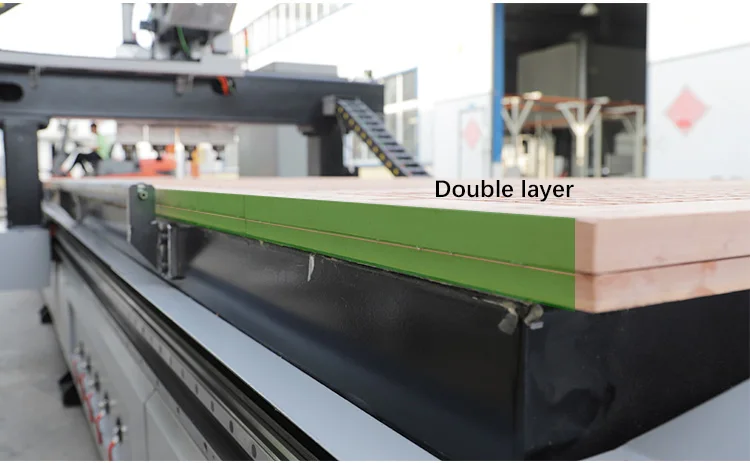

Workbench structure

Class A hard special vacuum adsorption table

Working voltage

380V/50HZ

Bed

Heavy-duty stable bed, CNC gantry milling

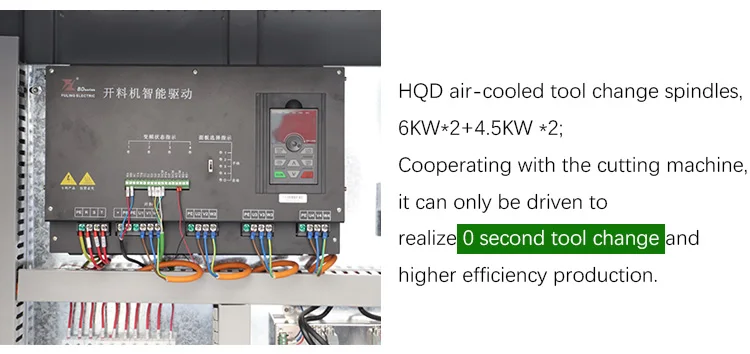

Spindle

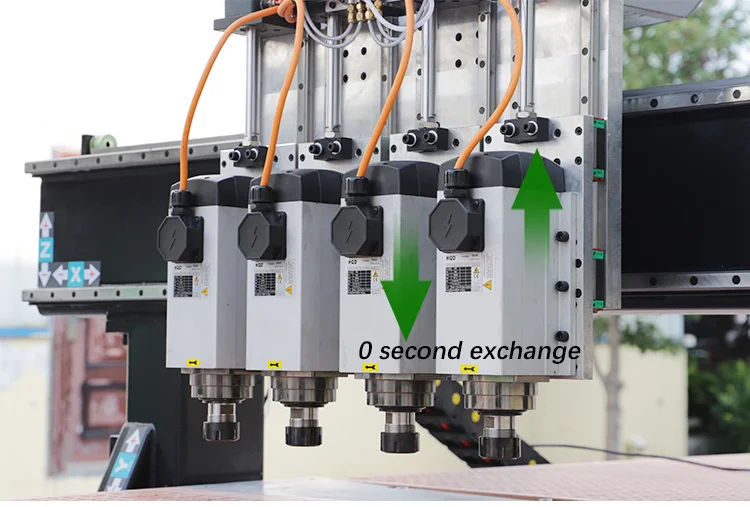

 HQD 6KW air-cooled tool change spindles*2, 4.5KW tool change spindle*2

Drive system

Japanese / Taiwan  server motor drive

Control system

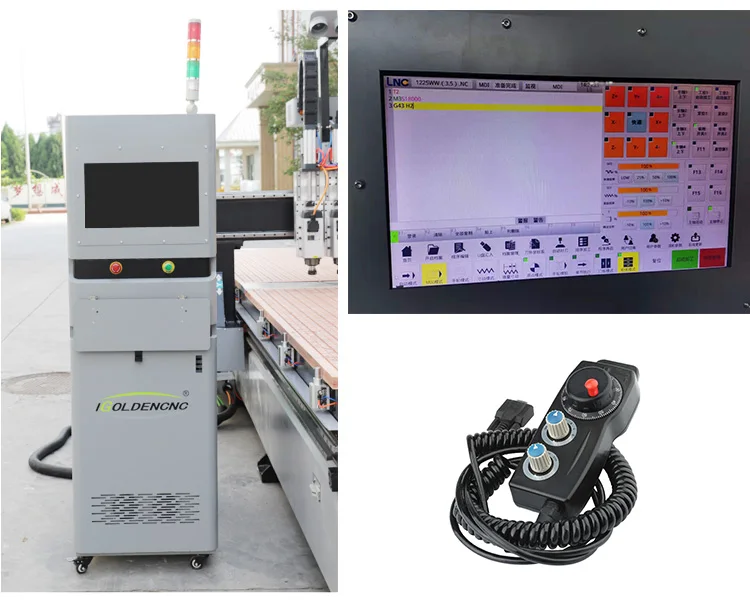

Taiwan LNC system + wireless handwheel

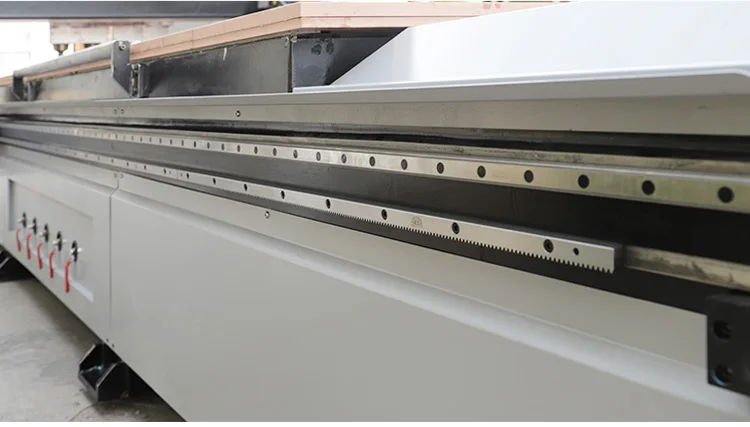

Rack

Taiwan high precision helical rack

Guide rail

Taiwan HIWIN square rail

Lead screw

Taiwan TBI lead screw

Electrical components

Schneider, France/ Omron, Japan

Inverter

Fuling

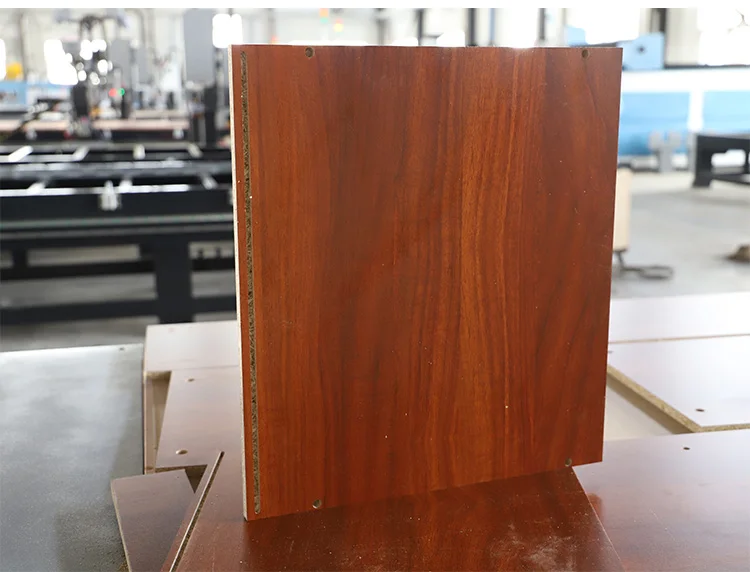

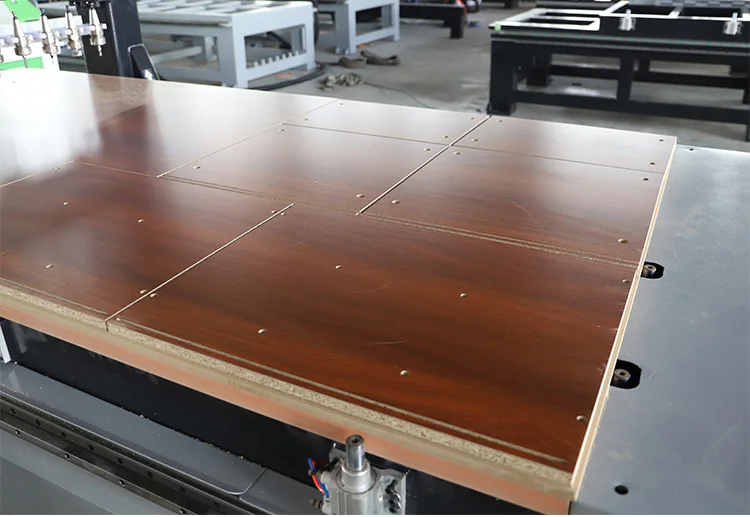

Sample & Application







Popular Machine

All the machine can be customized according to your own requirements. For example the machine is designed with linear or carouse tool changer, the amount of head or spindle can be added, also the rotary device is allowed to be installed on the machine……All in all, all the specification of machine can be customized!!! Now just  click the following machine for more details!

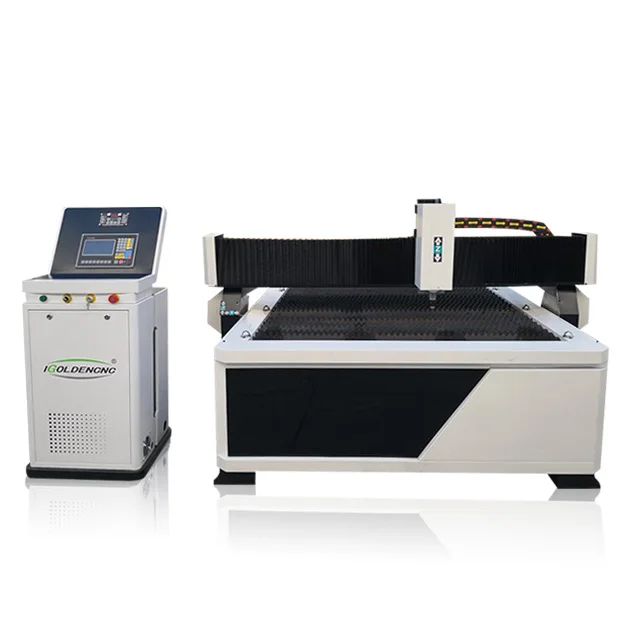

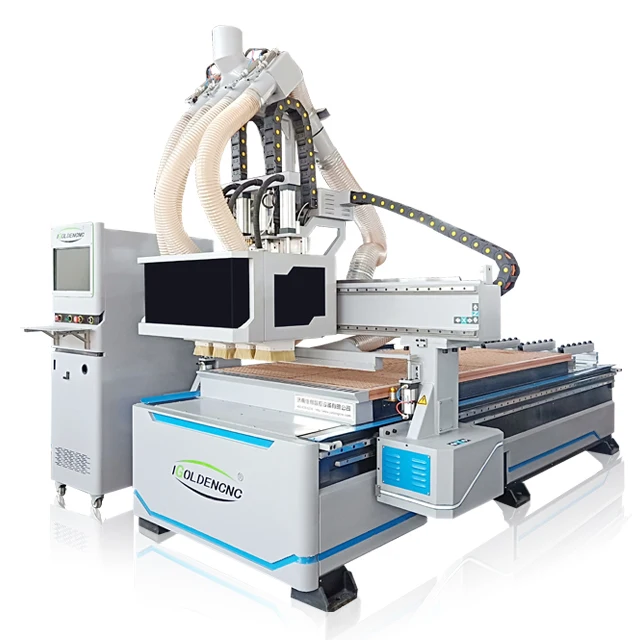

ATC CNC Machine Pneumatic Multi Spindles Plasma CNC





Company Information

shandong igolden cnc technology co. ,ltd is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.
