8kva 48v mppt pv power system pure sine wave solar inverter for house
8kva 48v mppt pv power system pure sine wave solar inverter for house
Regular price
£1,678.32 GBP
Regular price
£0.00 GBP
Sale price
£1,678.32 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Hot sales 8kw solar inverter 48v PV power system mppt anti dust pure sine wave inverter

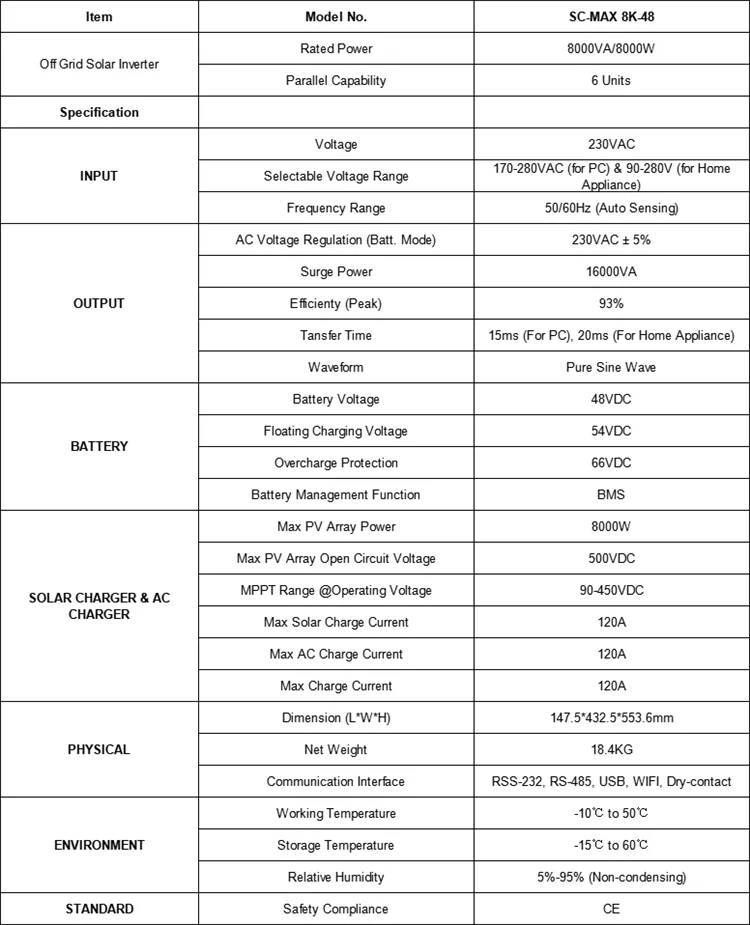

Technical Specification
|
Model Number
|
SC-MAX 8K-48
|
|
|
Parallel Capability
|
6 units
|
|
|
INPUT
|
||
|
Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170-280VAC(for personal computers), 90-280VAC(For home appliances)
|
|
|
Frequency Range
|
50/60(Auto sensing)
|
|
|
OUTPUT
|
||
|
AC Voltage Regulation
|
230VAC±5%
|
|
|
Surge Power
|
1600VA
|
|
|
Efficiency
|
93%
|
|
|
Transfer Time
|
15ms(for personal computer); 20ms(for home appliances)
|
|
|
Wave form
|
Pure sine wave
|
|
|
No load power consumption
|
<70w
|
|
|
DC Voltage
|
12VDC±5, 100w
|
|
|
BATTERY
|
||
|
Battery Voltage
|
48VDC
|
|
|
Floating Charge Voltage
|
54VDC
|
|
|
Overcharge Voltage
|
66VDC
|
|
|
Solar charger&AC Charger
|
||
|
Solar charger type
|
MPPT
|
|
|
Maximum PV Array Power
|
8000W(4000w*2)
|
|
|
MPPT Range@operationg Voltage
|
90-450VDC
|
|
|
Maximum PV Array Open circuit voltage
|
500VDC
|
|
|
Maximum Solar Charge Current
|
120A
|
|
|
Maximum AC Charge current
|
120A
|
|
|
PHYSICAL
|
||
|
Dimension(mm)
|
147.4*432.5*553.6
|
|
|
Net weight(Kg)
|
18.4
|
|
|
Communication interface
|
USB/RS232/RS485/Wifi/Dry contact
|
|
|
Environment
|
||
|
Humidity
|
5-95% relative humidity(no condensing)
|
|
|
Operating temperature
|
-10℃ to 50℃
|
|
|
Storage temperature
|
-15℃ to 60℃
|
|
|
STANDARD
|
||
|
Certificate
|
CE
|
|
