60W20AH Solar Power System Solar power system for energy-saving monitoring of street lights 4G router
60W20AH Solar Power System Solar power system for energy-saving monitoring of street lights 4G router
Couldn't load pickup availability
| Common monitoring equipment power consumption and configuration |
||||||
| Data basis: multimeter + monitoring equipment of different brands, the data has errors, for reference only! |
||||||
|
|
||||||
| Common monitoring equipment |
day (Fixed not light off) |
Night (make up the lights without turning on) Dome camera default near light |
cruise Increase power |
24-hour average power (not exercise) |
Recommended solar configuration (Calculated from 3 days) |
Remarks |
| 4G camera |
2W |
5.5W |
|
3.75W |
60W30A |
|
| 2.5 inch 4G mini ball |
2.1W |
3.7W |
|
2.9W |
60W30A |
|
| 4.5 inch 4G mini ball |
4.2W |
6.8W |
|
5.5W |
100W40A |
|
| 6 inch 4G ball |
5W |
9.8W |
|
7.4W |
100W60A |
|
| Fluorite Wireless C5C |
2.2W |
7W |
|
4.6W |
100W40A |
|
| Haikang AC24V ball machine |
9W |
15W |
|
12W |
300W120A |
|
| Wireless bridge |
6W |
Long power supply |
|
6W |
80W40A |
|
| 4G router |
6W |
Long power supply |
|
6W |
80W40A |
|
|
|
|
|
|
|
|
|
1. Single crystal 60W photovoltaic panel. Working temperature range -40+80 degrees. Working voltage 18-22V. Solar panel light conversion rate is more than 21%. Aluminum alloy frame. Monocrystalline silicon has a service life of more than 20 years
2. Ternary lithium battery. More than 1500 times of charging and discharging. Operating temperature range -40+80 degrees
3. Multifunctional waterproof box. Used to store batteries, controllers, 4G routers and other accessories
4. Wind-resistant photovoltaic panel mounting bracket (excluding monitoring poles)

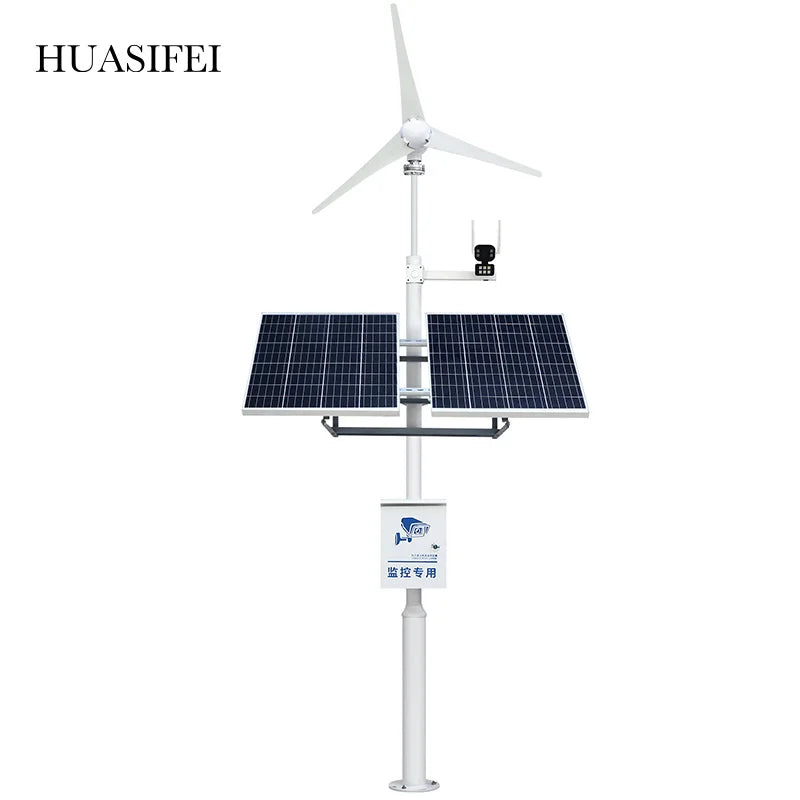

5, 300W wind generator (optional product, it needs more than three levels of wind to be effective, please contact customer service if you need it)
Solar monitoring kit: solar panel + fixed bracket + lithium battery + controller + waterproof box + 12VDC line + USB5V to DC line + 100M 12V POE power supply combiner + a set of mounting screw accessories
