200ah Lithium Battery 48v 10kwh Lifepo4 Deep Cycle Battery Pack For House Energy Storage Solar System
200ah Lithium Battery 48v 10kwh Lifepo4 Deep Cycle Battery Pack For House Energy Storage Solar System
Regular price
£5,840.99 GBP
Regular price
£0.00 GBP
Sale price
£5,840.99 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
200ah lithium battery 48v 10kwh lifepo4 deep cycle battery pack for house energy storage solar system
This Ground Eco lifepo4 battery for solar energy systems is based on 48v 50ah pack. And can add more for obtain your ideal energy use. The lithium battery for solar storage , with the chemistry is non-toxic and thermally stable, providing maximum longevity and safety.
Product Description
Details Images

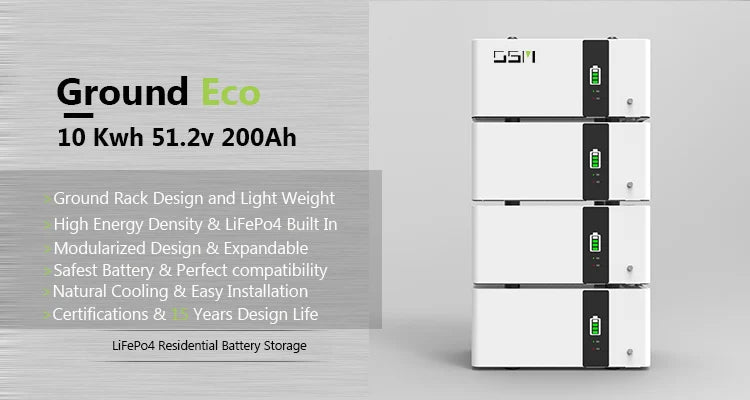

OSM Grond Eco
OSM 200ah deep cycle lifepo4 battery for solar energy systems is a great dynamic possibility which can be expanded in series as well as parallel, according to the need. The solar lifepo4 battery 48v modular design of battery makes it useful to meet higher energy storage capacities for solar energy systems. Add more modules will able to support higher current requirement . This deep cycle battery is based on various standard modules & comes with optimum flexibility to design customized modules & comes with optimum flexibility to design customized modules to fit different environment in door. It proves to be the safest battery with modular design in a true sense.
Stackable design
Make it easier to add more packs.
Hidden wire design
The wire collection device saves you the trouble of messy wires.
Battery SPEC
OSM 48v battery replace your old Battery system.
The initial charge of a disposable battery does attract it as a better buy product. But these batteries die down after certain number of usages. The rechargeable batteries are good enough till they can be recharged. But rechargeable batteries also drain over time. OSM 2.5kwh 5kwh 10kwh lithium iron phosphate storage batteries for solar energy systems have a greater thermal stability and long-life span compared to other rechargeable batteries. Apart from longer lifespans these batteries are also not prone to overheating and have a greater tolerance to harsh environmental conditions. Like lead-acid rechargeable batteries lithium batteries are also composed of many cells. Buying OSM lithium storage batteries is an extremely simple and efficient idea to save hundreds of your hard-earned dollars.
|
Model
|
Ground Eco
|
Ground Station
|
|||
|
LFPECO2800-L
|
LFPECO2800-H
|
STATION8400-L
|
|||
|
Capacity Energy
|
2.8kWh
|
2.8kWh
|
8.4kWh
|
||
|
Capacity Ah
|
55Ah
|
55Ah
|
165Ah
|
||
|
Suggested SOC
|
5%-100%
|
||||
|
Usable Capacity
|
2.6kWh
|
2.6kWh
|
7.8kWh
|
||
|
Nominal Voltage
|
40.0V - 57.6V
|
40.0V - 57.6V
|
40.0V - 57.6V
|
||
|
Maximum Charging/ Discharging Current
|
35A
|
50A
|
100A
|
||
|
Scalable
|
Parallel Max 16 packs
|
Series 2 to 8 packs
|
Parallel Max 16 packs
|
||
|
BMS
|
Robust Multi point monitoring BMS pre installed
|
||||
|
Life Cycling (0.5C 25℃)
|
6000 cycles
|
||||
|
Design life
|
15 years
|
||||
|
Operation Temperature
|
Chrage : 0℃~ 45℃, Dischrage : -20℃ ~ 45℃
|
||||
|
Storage Temperature
|
-20℃ ~ 45℃
|
||||
|
Weight
|
30Kg
|
30Kg
|
80Kg
|
||
|
Dimensions
|
480 x 280 x 210 mm
|
680 x 420 x 210 mm
|
|||
|
Communication
|
RS485, CAN
|
||||
|
Certifications
|
MSDS, UN38.3, RoHS, IEC62619, UL
|
||||
|
Mandayory
|
HV DC Main Unit for HV solution
|
||||
|
Optional
|
Fire Suppression, Heating system, Bottom bearing pallet
|
||||
Application
Compatible Inverter Brands
Goodwe
Luxpower
Deye
Voltronic
Sofarsolar
Victron
Sermatec
Luxpower
Deye
Voltronic
Sofarsolar
Victron
Sermatec
Safety Testing
