1000W 24V 100AH Solar AC DC portable solar power systems
1000W 24V 100AH Solar AC DC portable solar power systems
Regular price
£1,092.05 GBP
Regular price
£0.00 GBP
Sale price
£1,092.05 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
* It is a portable product for supplying power for small-power loads.It has a built-in solar controller.
* The solar controller samples parameters such as the battery's terminal voltage and capacity,the discharge current and the ambient temperature with help of a computer chip and computes through a special control moduel to realize efficient and accurate control over the discharge rate and the temperature compensation in line with characteristics of the battery.
* With an efficient PWM charge mode,the battery can operate in the best status and have a long life.
* The system has a 12VDC output terminal and a 5VDC output terminal, overall protection such as short circuit potection, overload protection,unique reverse conection prevention,automatic shutoff upon full charge or overdischarge,detailed charge indication,battery satus indication load indication and fault indication.

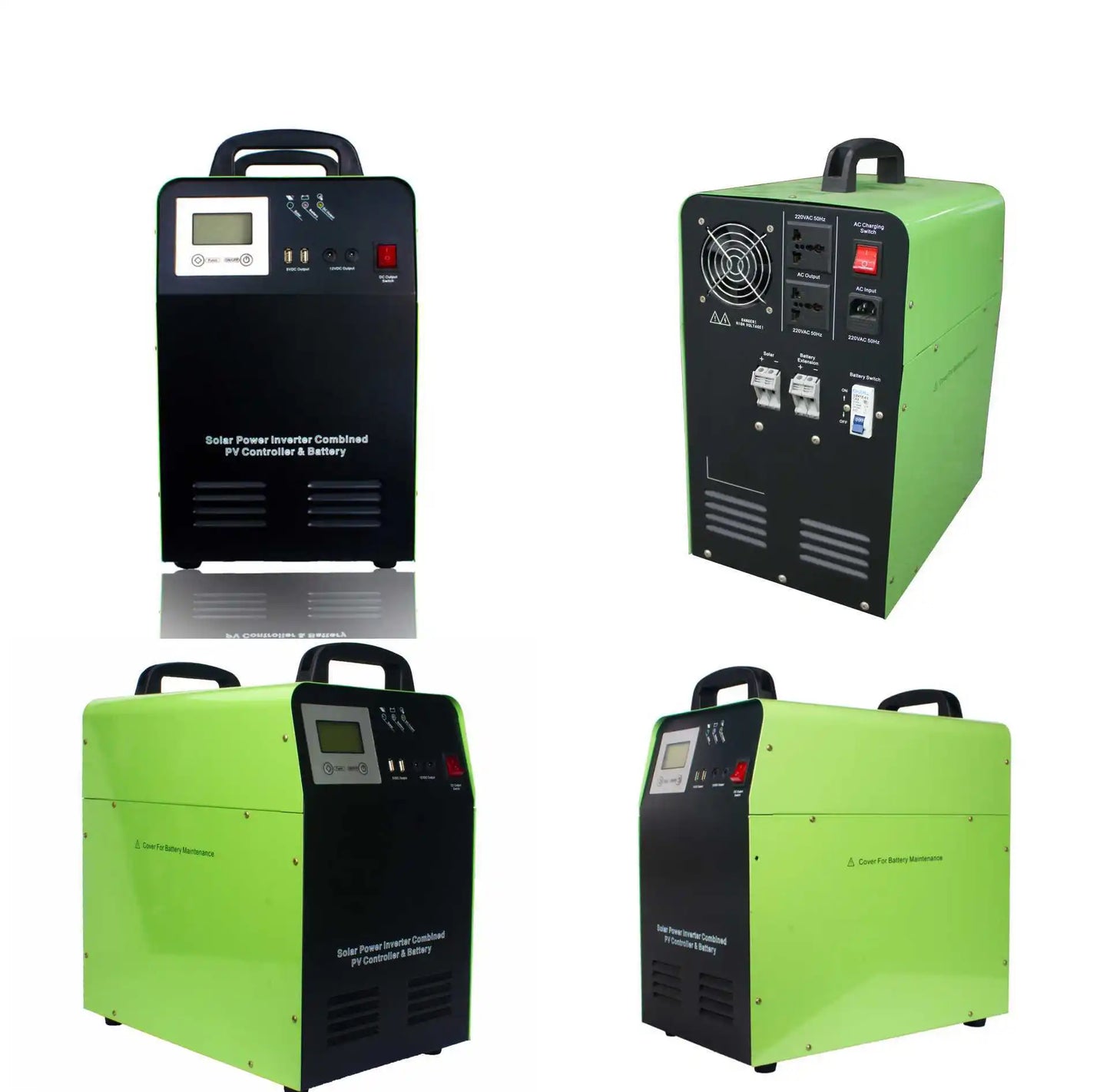

Detailed Images
Product detail drawing

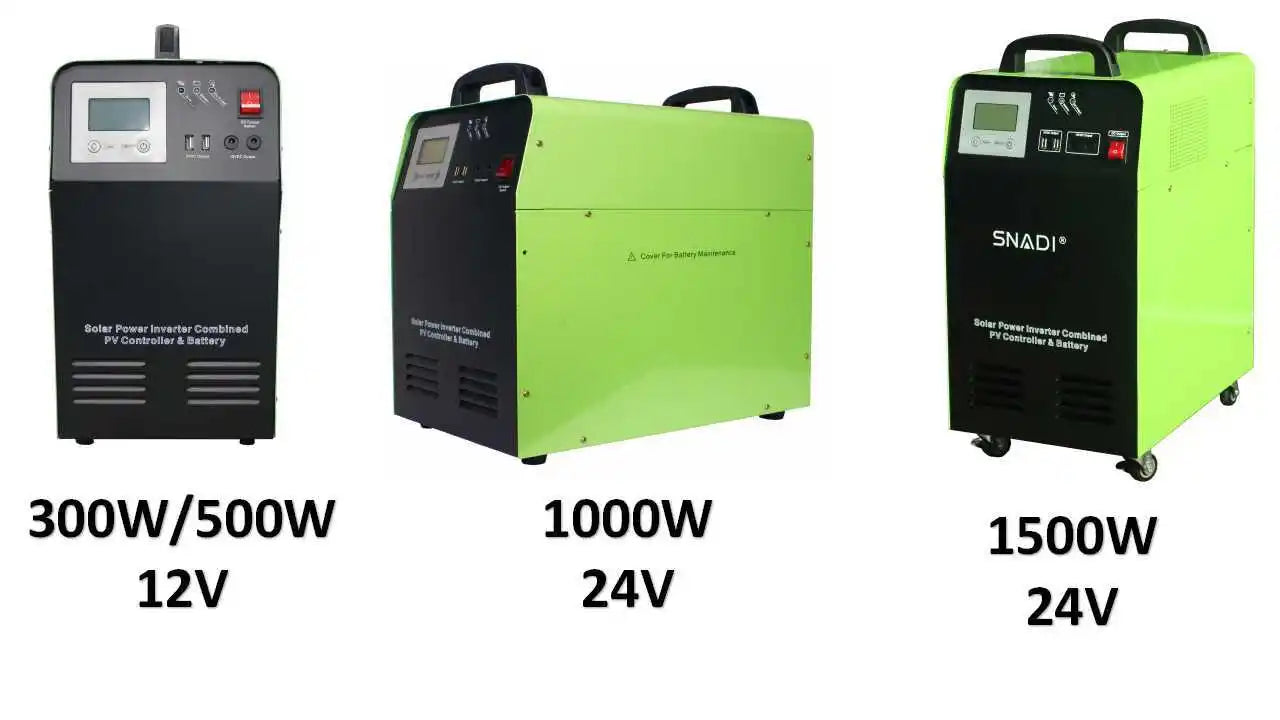

Technical Index
|
Mode: AL
|
0.3kw/12v
|
0.5kw/12v
|
0.5kw/24v
|
1kw/24v
|
1.5kw/24v
|
||||||
|
Inverter
|
Battery voltage
|
12v
|
24v
|
||||||||
|
In-built battery specification
|
1*55AH/12V
|
2*565AH/12V
|
4*55AH/12V
|
||||||||
|
Rated power
|
300W
|
500W
|
500W
|
1000W
|
1500W
|
||||||
|
Output voltage
|
110/220VAC
|
||||||||||
|
Output frequency
|
50/60HZ
|
||||||||||
|
Output waveform
|
sine wave
|
||||||||||
|
Charge by a mains supply
|
Rated voltage
|
110/220VAC---*("*"mean an optional function)
|
|||||||||
|
Charge current
|
10A(MAX)-*(ditto)
|
5A(MAX)-*(ditto)
|
|||||||||
|
solar input
|
Maximum power
|
≤25V
|
≤50V
|
||||||||
|
Voltage of overcharge protection
|
10-25V
|
20-50V
|
|||||||||
|
Rated charge current
|
20A
|
||||||||||
|
Maximum power
|
360Wp
|
720Wp
|
|||||||||
|
Voltage of overcharge protection
|
14.2V
|
28.4V
|
|||||||||
|
Voltage of overcharge recovery
|
14.0V
|
28.0V
|
|||||||||
|
Voltage of floating charge
|
13.7V
|
27.4V
|
|||||||||
|
DC output
|
Voltage of high-voltage protection
|
16V
|
32V
|
||||||||
|
Voltage of high voltage recovery
|
15.2V
|
30.4V
|
|||||||||
|
Voltage of low voltage recovery
|
12.6V
|
25
|
|||||||||
|
Voltage of lower voltage protection
|
11V
|
22V
|
|||||||||
|
5VDC USB output port
|
2one/MAX2A
|
||||||||||
|
12VDC output port
|
2 one ports + backboard 12V terminal block (MAX8A)
|
||||||||||
|
Starting temperature of the exhaust fan
|
>45℃
|
||||||||||
|
Ambient temperature for operation
|
0-40℃
|
||||||||||
|
Ambient temperature for storage
|
-25--+55℃
|
||||||||||
|
Operation/storage condition
|
0-90% (no condensation)
|
||||||||||

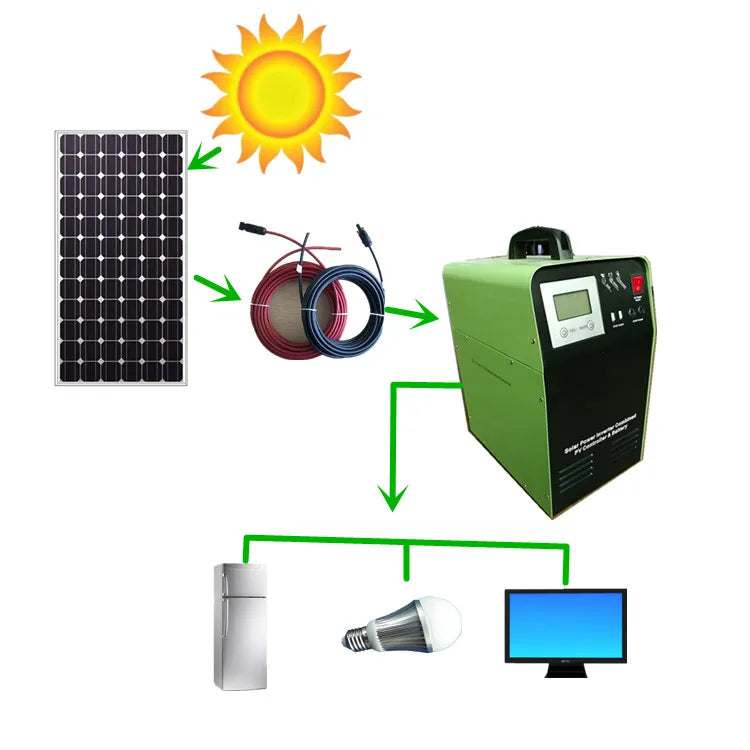

Application
